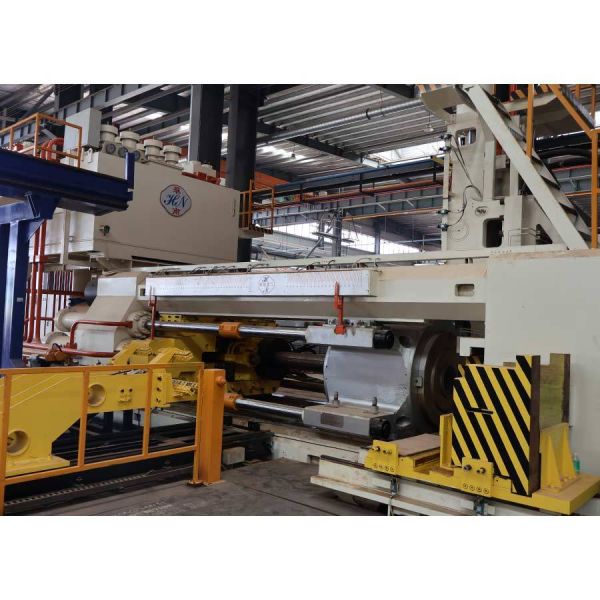

4500T Top Selling Customized Aluminium Extrusion Press Machine for Extruding Aluminum Profile
The 4500T High-Quality Hydraulic Aluminum Extruder Machine is a heavy-duty industrial solution designed for precision aluminum profile production with exceptional efficiency.
Product Specifications
| Attribute | Value |
| Power | Electric energy |
| Size | Customizable |
| Use | Aluminum Extrusion |
| Motor | Servo or ordinary motor |
| Functional | Automatic or semi-automatic |
| Surface treatment | Heat treatment |
| Material | Steel Forging |
| Color | Customized |
Key Features
- High Tonnage Capacity (4500 Metric Tons): Ideal for large-scale extrusion of heavy, complex profiles including thick-walled and high-strength aluminum sections.
- Hydraulic Drive System: Delivers smooth, high-pressure extrusion with precise control while optimizing energy consumption.
- Precision Extrusion: Advanced PLC control system ensures high extrusion speed and efficiency with minimal material waste.
- Durable Construction: Robust frame with heat-resistant and wear-resistant materials for extended operational lifespan.
- Automation & Smart Control: Features automated billet loading, extrusion, and cutting processes with real-time performance monitoring.
Technical Specifications
| Specification | Value |
| Standard Billet Size (Outer diameter) | Φ355mm |
| Standard Billet Size (Length) | 1400mm |
| Machine Extrusion Force | 45MN |
| Die Size (Diameter) | Φ700mm |
| Die Size (Depth) | H650mm |
| Total Power | 910KW |
| Main Oil Pump (Hilectro brand) | IS580T370-180KW*5 |
| Liquid Cooling Driver | E01817Y123RK*5 |
| Main Oil Pump (Germany Rexroth) | A4SO355*5/ 35 MPa variable pumps |
| Auxiliary Pump (Tokyo Keiki) | SQP43-60-38*5/ 16 MPa |
Structural Advantages
- Short-stroke design enhances frame rigidity by 30% compared to conventional extruders.
- Reduced main side cylinder volume lowers hydraulic oil consumption while improving speed/pressure control accuracy.
- Elimination of gasket circulation system reduces reactive operation time and power consumption by 15%.
- Servo motor-driven translation manipulator decreases non-extrusion time by an additional 15%.
Application Fields
This extruder serves multiple industries including construction, industrial trade, new energy, and photovoltaic sectors. Aluminum profiles produced are used in:
- Architectural elements (roofs, walls, doors, windows, frames)
- Structural components (lattice shells, grid structures, glass curtain walls)
- Decorative applications (awnings, bridges, interior/exterior panels)
- Industrial solutions (store containers, formwork, partitions)
Technical Characteristics
- Key components (container, extrusion pad, shear blade, ingot feeder) feature optimized designs with low failure rates.
- Minimal operational impact and vibration significantly reduce oil leakage risks.
- High responsiveness with short non-extrusion periods for maximum efficiency.
- Exceptional precision with extrusion speed control accuracy of ±0.1mm.
- Advanced automation reduces operator and maintenance requirements.
Product Images
Frequently Asked Questions
Q1: How is the quality of Huanan Brand machine and the service life?
Huanan Brand is recognized as top-tier extrusion equipment in China. Customer feedback indicates a typical machine lifespan exceeding 15 years under normal conditions, with many well-known aluminum manufacturers among our clientele.
Q2: How to choose the right type machine?
Please provide details about your products and profile sectional drawing dimensions. Our engineers will calculate and recommend the optimal machine size for your requirements.
Q3: Will Huanan provide installation service?
Once equipment arrives and installation conditions are met, we dispatch technicians for on-site installation and comprehensive operator training.
Q4: What is the delivery time of Huanan Machines?
- 600-1000MT machines: 30 days
- 1250-1800MT machines: 45-60 days
- 2000-3000MT machines: 180 days
- 3000MT+ machines: 6-12 months
- Complete production lines: 3-10 months
Q5: What services Huanan can do for you?
Huanan provides comprehensive one-stop services including technical consultation, customized production proposals, complete manufacturing and documentation services, installation, training, and lifetime maintenance support.
